WATER AND WASTEWATER TECHNOLOGIES
COMPACT PUMPING STATION
| Model | volume (l) | He (mm) | Hs (mm) | C (mm) | Weight (Kg) | DT |
|---|---|---|---|---|---|---|
| Mini ECO | 500 | 955 | 795 | 400 | 50 |
|
| ECO BST | 1.100 | 820 | 820 | 820 | 75 |
|
| ECO BST PLUS | 1.500 | 820 | 820 | 820 | 95 |
|
Legend:
L - Length | H - Height | I - Width | D - Diameter | C - Cover | He - Cota Piping Input |
Hs - Piping Output Quota | FT - Technical Data | DT - Technical Drawing | The dimensions (in mm) are given as an indication, with tolerance of ±2%, and can be changed without notice.
Hs - Piping Output Quota | FT - Technical Data | DT - Technical Drawing | The dimensions (in mm) are given as an indication, with tolerance of ±2%, and can be changed without notice.

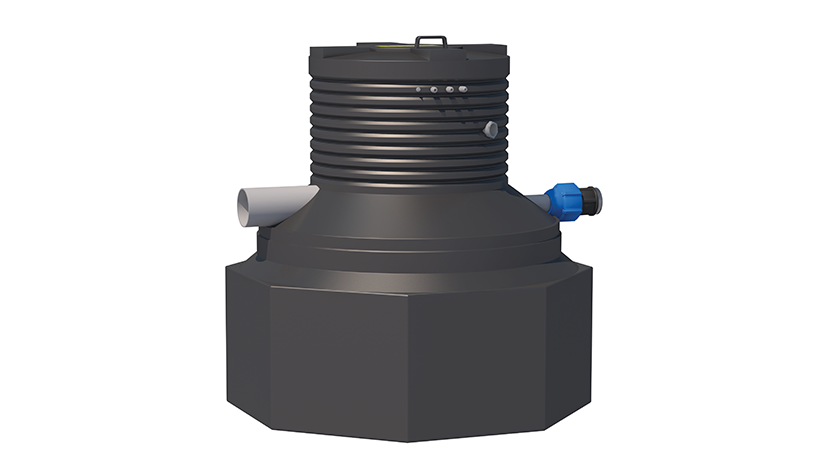

Compact Pumping Stations, ECODEPUR® ECO BST PLUS are watertight tanks, ready to install, intended for the reception and elevation of wastewater. It is formed by a Polyethylene tank, equipped with vortex pumps, Electric Board and level switches.
MAIN CHARACTERISTICS
- One (1) Tank Manufactured in Liner Polyethylene with Anti-UV added, by rotomolding system
- Two (2) Submersible pumps, Domo type or equivalent;
- Two (2) elevated system for the pump;
- Two (2) Retention valve, DN 50 FFD, instaled inside the tank;
- One (1) Electric border to comand and control off the lift wil higth level sound alarm incorporated
- Four (4) level switches of type float with 10 meters, mercury-free.
