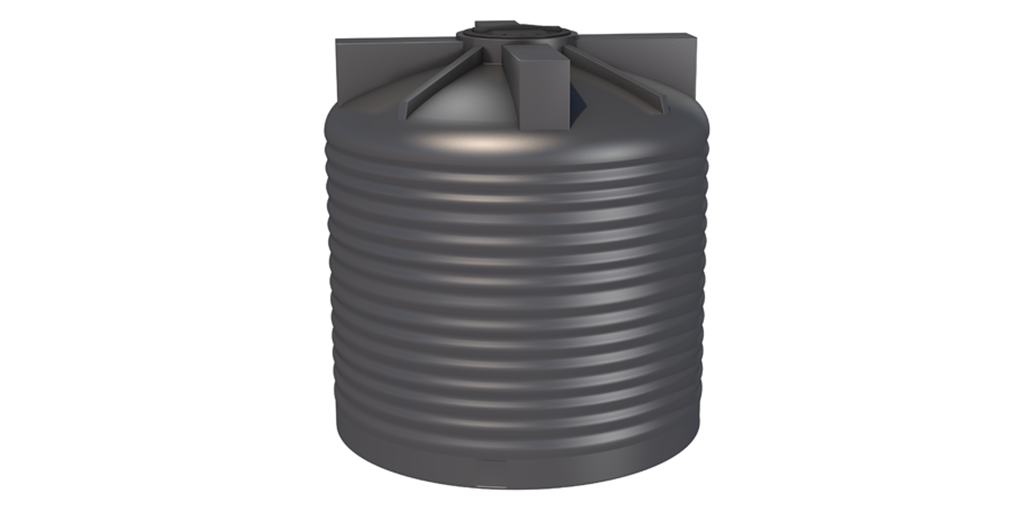

SLUDGE TRAP | ECODEPUR® DS

View models and dimension table (click here)
MODEL Volume (l) Dimensions (DxLxH) He (mm) Hs (mm) C (mm) Ø Pipe (mm) Weight (Kg) FT
DS-500 500 700 x 731 x 1.255 955 785 400 110 32 -
DS-1.000 1.000 1.210 x - x 1.380 1.080 1.030 600 110 65
DS-1.500 1.500 1.210 x 1.350 x 1.310 1.065 1.025 400 125 60
DS-2.000 2.000 1.530 x - x 1.655 1.400 1.350 400 160 75
DS-3.000 3.000 1.500 x 1.900 x 1.550 1.285 1.205 400 160 115
DS-4.000 4.000 1.890 x - x 1.940 1.675 1.625 400 160 125
DS-5.000 5.000 1.800 x 2.320 x 1.870 1.560 1.475 400 200 175
Legend: L - Length | H - Height | I - Width | LT - Overall width | D - Diameter | C - Cover | He - Cota Piping Input |
Hs - Piping Output Quota | FT - Technical Data | DT - Technical Drawing | The dimensions (in mm) are given as an indication, with tolerance of ±2%, and can be changed without notice.

The Sludge Traps ECODEPUR® DS are mainly used to remove precipitable substances from waste water.

ADVANTAGES

  • High mechanical resistance and corrosion protection;
  • Light and easy to install and maintain;
  • Totally watertight;
  • Without power consumption;
  • Low cost.

APPLICATION

The usage of ECODEPUR® Sludge Trap DS is recommend range in a line treatment of oily waters, upstream of Oil Separator.

MAIN CHARACTERISTICS

  • Manufactured in additive linear polyethylene anti-UV, by rotomoulding system, which confer elevated mechanical resistance and corrosion protection;
  • Remove precipitable substances from waste water.
